Hedland Variable Area EZ-View Flow Meter

Variable Area EZ-VIEW^® Flow Meters

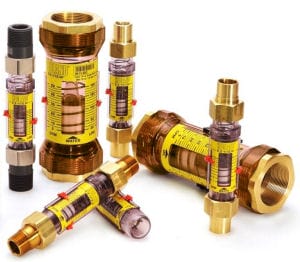

Basic Flow Meter

• Flow ranges: 0.5 – 4.0 GPM (2 – 15 LPM); up to 10 – 100 GPM (40 – 380 LPM)
• Available in 1/2 to 2 inch ports
• Rugged construction: Polysulfone or Radel® R bodies for 1/2″ thru 1″ models; Radel® R bodies for 1-1/2″ & 2″ models
• Pressure up to 325 psi (22 bar) maximum
• Temperature up to 250 °F (121 °C) maximum
• Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
• EZ to install in any position
• No special piping or flow straighteners needed
• No electrical connections
• Direct reading indication
• Accuracy within ±5%
• Relatively insensitive to shock and vibration
• Optional: Special scales available

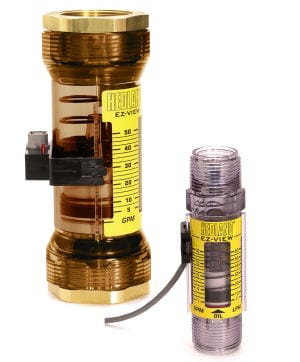

Flow-Alert^TM Flow Switch

• Automatically signals alarm, if flow is too low or too high
• Reed switch and latching models
• Latching models include 4-pin electrical connector (Protection Class IP65)
• Flow ranges: 0.5 – 4 GPM (2 – 15 LPM) up to 10 – 100 GPM (40 – 380 LPM)
• Rugged construction: Polysulfone or Radel® R bodies for 1/2″ thru 1″ models; Radel® R bodies for 1-1/2″ & 2″ models
• Available in 1/2 to 2 inch ports
• Offered in a wide variety of fitting styles
• Pressure up to 325 psi (22 bar) maximum
• Temperature up to 250 °F (121 °C) maximum
• Accuracy within ±5%
• Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
• EZ to install in any position
• No special piping or flow straighteners needed
• Direct reading indication
• Accuracy within ±5%
• Relatively insensitive to shock and vibration
• Includes: Basic flow meter; Flow-Alert flow switch module(s)
• Optional: Special scales available

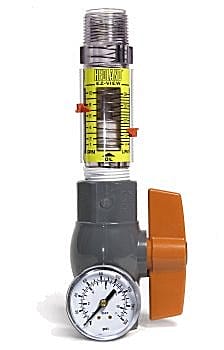

Test Kit

• For oil, water, and other fluids
• Simultanteously monitors in-line flow and pressure
• Flow ranges: 0.5 – 4 GPM (3 – 15 LPM) up to 4 – 28 GPM (20 – 100 LPM)
• Rugged polysulfone or Radel® R construction
• Available in 1 inch NPT
• Pressure up to 325 psi (22 bar) maximum
• Temperature up to 150 °F (65.6 °C) maximum
• Accuracy within ±5%
• Standard calibration: .876 specific gravity for oil; 1.0 specific gravity for water
• EZ to install in any position
• No special piping or flow straighteners needed
• No electrical connections
• Direct reading indication
• Relatively insensitive to shock and vibration
• Load valve: Polyvinyl chloride (PVC)
• Pressure gauge: Water-tight 0 – 160 psi
• Includes: Basic flow meter; PVC load valve; Pressure gauge
• Optional: Special scales available
