Block Body High Pressure
1/8″ – 1-1/2″
BBV Series
Specifications
- Block Body, High Pressure Shut-off Valves
- 1/8″-1″ Fully Ported-(11⁄4″ & 11⁄2″ with reduced bore)
- NPT, BSP or SAE O-Ring Connectors
- Delrin +MoS2 Ball Seats
- Viton O-Ring
- Pressure Range: Up to 7250 PSI (500 bar) (depending on material combination and size)
- Standard Carbon Steel Construction
- Standard Temperature Range: -20°F to 212°F (-17°C to 100°C)
- Zinc Plated Body
- Hard Chrome Plated Steel Ball
Options
- Locking Kits
- Limit Switch
- Actuator Packages Available
- Straight Handles
- Stainless Steel Body
- Stainless Steel Ball and Stem
- Special seat and “O”-Ring materials available for higher temperatures or more aggressive media.
| Size | Part Number | Maximum Working Pressure | Size | Part Number | Maximum Working Pressure | ||||
| PSI | Bar | PSI | Bar | ||||||
| 1⁄8″ | NPT | BBV20020001K | 7250 PSI | 500 | 3⁄4″ | NPT | BBV20120001K | 6000 PSI | 410 |
| SAE | BBV21020001M | 7250 PSI | 500 | SAE | BBV21120001M | 6000 PSI | 410 | ||
| 1⁄4″ | NPT | BBV20040001K | 7250 PSI | 500 | 1″ | NPT | BBV20160001K | 5000 PSI | 345 |
| SAE | BBV21040001M | 7250 PSI | 500 | SAE | BBV21160001M | 5000 PSI | 345 | ||
| 3⁄8″ | NPT | BBV20060001K | 7250 PSI | 500 | 1-1/2″ | NPT | BBV20160001H | 6000 PSI | 420 |
| SAE | BBV21060001M | 7250 PSI | 500 | SAE | BBV21160001H | 6000 PSI | 420 | ||
| 1⁄2″ | NPT | BBV20080001K | 7250 PSI | 500 | |||||
| SAE | BBV21080001M | 7250 PSI | 500 | ||||||
Forged Body High Pressure
1-1/4″ – 2″
FBV Series
Specifications
- Forged Body, High Pressure Valves
- 1-1⁄4″ – 2″ Fully Ported
- NPT, BSP or SAE O-Ring Connections
- Delrin +MoS2 Ball Seats
- Viton O-Rings
- Steel Handle
- Pressure Range: Up to 5000 PSI (345 bar)
- Carbon Steel Construction
- Temperature Range: -20°F to 212°F (-28°C to 100°C)
- Zinc Plated Body
Options
- Locking Kits
- Limit Switches
- Stainless Steel Body
- Stainless Steel Ball and Stem
- Straight Handles
- Actuator Packages Available
- Special seat and “O”-Ring materials available for higher temperatures or more aggressive media.
| Size | Part Number | Maximum Working Pressure | ||
| PSI | Bar | |||
| 1-1⁄4″ | NPT | FBV20200001M | 6000 PSI | 420 |
| SAE | FBV21200001M | 6000 PSI | 420 | |
| 1-1⁄2″ | NPT | FBV20240001M | 6000 PSI | 420 |
| SAE | FBV21240001M | 6000 PSI | 420 | |
| 2″ | NPT | FBV20320001M | 6000 PSI | 420 |
| SAE | FBV21320001M | 6000 PSI | 420 | |
Block Body Medium Duty
1/4″ – 1-1/2″
BBVM Series
Specifications
- Block Body, Medium Duty High Pressure Shut-off Valves
- 1/8″-1″ Fully Ported-(1-1⁄4″ & 1-1⁄2″ with reduced bore)
- NPT SAE O-Ring Connectors
- Delrin +MoS2 Ball Seats
- Buna O-Ring
- Pressure Range: Up to 7250 PSI (500 bar) (depending on material combination and size)
- Standard Carbon Steel Construction
- Standard Temperature Range: -20°F to 212°F (-17°C to 100°C)
- Zinc Plated Body
- Brass Ball
Options
- Locking Kits
- Limit Switch
- Straight Handles
| Size | Part Number | Maximum Working Pressure | Size | Part Number | Maximum Working Pressure | ||||
| PSI | Bar | PSI | Bar | ||||||
| 1⁄8″ | NPT | BBVM20020200K | 7250 PSI | 500 | 3⁄4″ | NPT | BBVM20120200K | 6000 PSI | 420 |
| SAE | BBVM21020200M | 7250 PSI | 500 | SAE | BBVM21120200M | 6000 PSI | 420 | ||
| 1⁄4″ | NPT | BBVM20040200K | 7250 PSI | 500 | 1″ | NPT | BBVM20160200K | 5000 PSI | 345 |
| SAE | BBVM21040200M | 7250 PSI | 500 | SAE | BBVM21160200M | 5000 PSI | 345 | ||
| 3⁄8″ | NPT | BBVM20060200K | 7250 PSI | 500 | 1-1 ⁄4″ | NPT | BBVM20200200K | 5000 PSI | 345 |
| SAE | BBVM21060200M | 7250 PSI | 500 | SAE | BBVM21200200M | 5000 PSI | 345 | ||
| 1⁄2″ | NPT | BBVM20080200K | 7250 PSI | 500 | 1-1⁄2″ | NPT | BBVM20240200K | 3600 PSI | 250 |
| SAE | BBVM21080001M | 7250 PSI | 500 | SAE | BBVM21240001M | 3600 PSI | 250 | ||
1/4″ – 1″
HBV 12,000 PSI Series
Specifications
- 12,000 PSI (825 bar) Working Pressure
- Two-Way Valves
- 1/4″ – 1″ Fully Ported
- NPT and SAE Threaded Connections
- Temperature Range: -30°F to 212°F (-34°C to 100°C)
- Peek Seat Material
- Carbon Steel
- Zinc Plated Body
Options
- Stainless Steel Construction
- Limit Switches
- Actuator Packages Available
| Size | Part Number | Maximum Working Pressure | ||
| PSI | Bar | |||
| 1⁄4″ | NPT | HBV20040001M | 12,000 PSI | 825 |
| 3⁄8″ | NPT | HBV20060001M | 12,000 PSI | 825 |
| 1⁄2″ | NPT | HBV20080001M | 12,000 PSI | 825 |
| 3⁄4″ | NPT | HBV20120001M | 12,000 PSI | 825 |
| 1″ | NPT | HBV20160001M | 12,000 PSI | 825 |
 |  |
High Pressure Port Adaptors
302/602 Series
Use these Carbon Steel (Zinc Plated) adaptors to extend the application range of Stauff SAE Threaded Valves by using High Pressure Adaptors on one or both ports. Maximum pressure to 7250 PSI (500 bar).

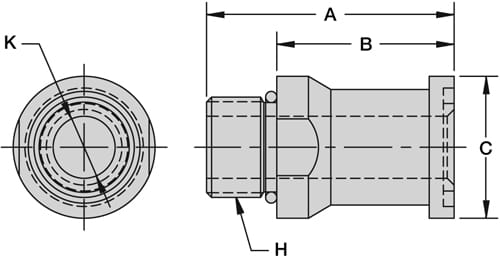

| Part Number | Tube O.D. | Flange Size | A Inches (mm) | B Inches (mm) | C Inches (mm) | H Thread | K Inches (mm) | |
| Code 61 | Code 62 | |||||||
| 302-12-12 | 3⁄4″ | 3⁄4″ | 2.48 (62.99) | 1.88 (47.75) | 1.50 (38.10) | 1-1⁄16 – 12 | 0.66 (16.76) | |
| 302-16-16 | 1″ | 1″ | 2.48 (62.99) | 1.88 (47.75) | 1.75 (44.45) | 1-5⁄16 – 12 | 0.88 (22.35) | |
| 302-20-20 | 1-1⁄4″ | 1-1⁄4″ | 3.00 (76.20) | 2.40 (60.96) | 2.00 (50.80) | 1-5⁄8 – 12 | 1.10 (27.94) | |
| 302-24-24 | 1-1⁄2″ | 1-1⁄2″ | 3.01 (76.45) | 2.41 (61.21) | 2.38 (60.45) | 1-7⁄8 – 12 | 1.30 (33.02) | |
| 302-32-32 | 2″ | 2″ | 3.50 (88.90) | 2.4 (60.96) | 2.81 (71.37) | 2-1⁄2 – 12 | 1.80 (45.72) | |
| 602-12-12 | 3⁄4″ | 3⁄4″ | 2.48 (62.99) | 1.88 (47.75) | 1.62 (41.15) | 1-1⁄16 – 12 | 0.66 (16.76) | |
| 602-16-16 | 1″ | 1″ | 2.48 (62.99) | 1.88 (47.75) | 1.87 (47.50) | 1-5⁄16 – 12 | 0.88 (22.35) | |
| 602-20-20 | 1-1⁄4″ | 1-1⁄4″ | 2.82 (71.62) | 2.23 (56.64) | 2.12 (53.85) | 1-5/8 – 12 | 1.10 (27.94) | |
| 602-24-24 | 1-1⁄2″ | 1-1⁄2″ | 3.19 (81.03) | 2.41 (61.21) | 2.50 (63.50) | 1-7/8 – 12 | 1.30 (33.02) | |
| 602-32-32 | 2″ | 2″ | 3.60 (91.44) | 3.00 (76.20) | 3.12 (79.25) | 2-1/2 – 12 | 1.80 (45.72) | |
