12-Button Handheld Remote

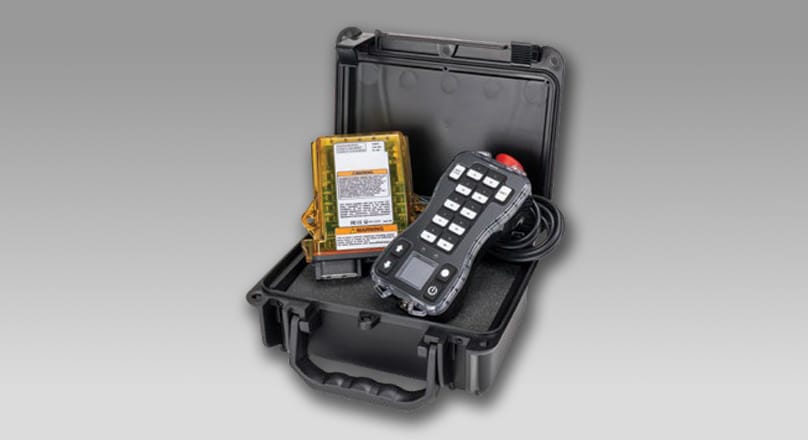

The Ranger is the smallest of the Evolution transmitter designs, ideal for singlehanded use and non-PWM control. This transmitter can be configured for 900 MHz or 2.4 GHz transmission and features a membrane keypad with 12 pushbuttons and a 1.2” sunlight-readable display for engine, sensor, and machine feedback or transmitter setup/diagnostics. The twist-to-unlock machine stop switch, charging port and magnetic base make the Ranger an agile and versatile control option for a variety of mobile applications.
Details
Specs
Documentation
Related Products
Model #: LXH-900-KP
Details:
- Pairs with LXB Receiver or LXC Receiver
- 5045: AC charging cable
- 5044: DC charging cable
Optional Accessories:
- 8250: LXB or 8251: LXC receiver harness with flying leads
- 5318: Charging docking station with AC/DC charging cables
- 6195: Diode suppression kit (Required with LXB receiver)
- Customization available with 25pc MOQ (Additional engineering fees may apply)
+
–
General Specifications 900 MHz
Frequency Range
ISM 902 MHz – 928 MHz
Frequency Control
7 Frequency hopping channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1,500 ft. (LOS)**
+
–
General Specifications 2.4 GHz
Frequency Range
2403.328 MHz – 2480.128 MHz (ARIB STD–T66) 2473.984 MHz – 2493.440 MHz (RCR STD–33)
Frequency Control
42 Frequency hopping channels (Software Selectable)
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-40°C – 85°C (-40°F – 185°F)
Humidity
Up to 90% RH, non-condensing
Operating Range
Approx. 1,200 ft. (LOS)**
+
–
Transmitter Specifications
Supply Voltage
9 VDC Min; 32 VDC Max
Max. Current Consumption
< 180 mA (RF Active); < 10 mA (Idle Mode)
Digital Inputs
10 x 2-step push buttons with Haptic Feedback 2 x Single-step push buttons E-Stop Input
LED Outputs
2 (RF and Error)
CAN Connection
J1939 (2-wire)
Power Saving Features
RF Emissions Off Delay < 1 s; Sleep Mode after 3 min (< 1 mA)
Antenna
Internal*
Dimensions
Approx. 8.75″ × 4.5″ × 4.5″
Weight
Approx. 2 lbs
Enclosure
IP67
Industries We Serve
Forestry | Utilities | Agriculture
The Ranger Wireless Remote Kit enhances control for harvesters, bucket trucks and tractors.
Concrete | Construction | Municipal
The Ranger Wireless Remote Kit provides precise operation for concrete mixers, excavators and street sweepers.
Mining | Metals | Oil & Gas
The Ranger Wireless Remote Kit ensures reliable control for haul trucks, metal forging presses and drilling rigs.
Defense & Aerospace
The Ranger Wireless Remote Kit delivers precise operation for combat vehicles and aerospace ground support equipment.
