Proportional Joysticks Plus 11-Toggle Switch Remote

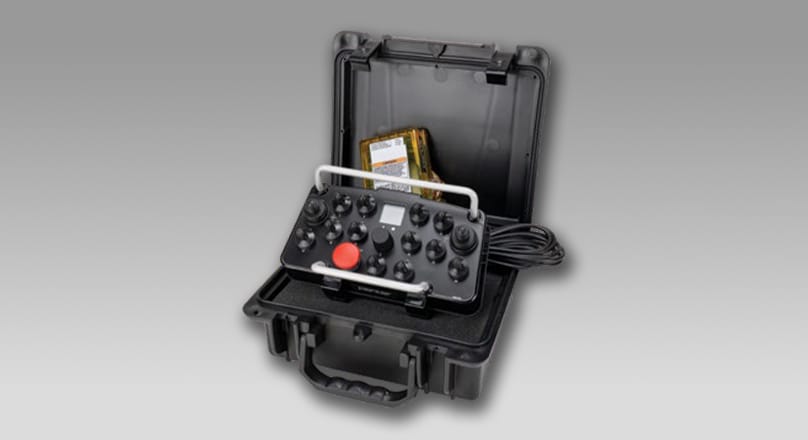

The Stryker Pro transmitter takes field command to the next level by releasing operators from digital-only outputs and adding a pair of precision thumbsticks for smooth proportional control of hydraulic components. The Stryker Pro features our 2.4 GHz FEX technology, 11 momentary multi-directional toggle switches, a sunlight-readable display, a twist-to-unlock stop switch, and a magnetic base.
Details
Specs
Documentation
Related Products
Model #: Model #: LXT-24-JS
Details:
- Transmitter: Stryker Pro Transmitter
- Pairs with LXB Receiver or LXC Receiver
- 5045: AC charging cable
- 5044: DC charging cable
- Protective case
Optional Accessories:
- 8250: LXB or 8251: LXC receiver harness with flying leads
- 5318: Charging docking station with AC/DC charging cables
- 6195: Diode suppression kit (Required with LXB receiver)
- Customization available with 25pc MOQ (Additional engineering fees may apply)
+
–
2.4 GHz General Specifications
Frequency Range
2400 – 2483.5 MHz
Frequency Control
42 Frequency Hopping Channels (Software Selectable)
Modulation
MSK
Security
Channelization, System ID, and Vendor ID
Operating Temperature
-40C to 85C (-40F to 185F)***
Humidity
Up to 90% RH, non-condensing
+
–
900 MHz General Specifications
Frequency Range
ISM 902 MHz – 928 MHz
Frequency Control
7 Frequency Hopping Channels (Software Selectable)
Modulation
DSSS (Direct Sequence Spread Spectrum)
Error Correction
Automatic Error Detection and Automatic Retransmission
Operating Temperature
-40C to 85C (-40F to 185F)***
Humidity
Up to 90% RH, non-condensing
+
–
Transmitter Specifications
Display
128 x 128 px Sunlight Readable E-Ink display
Battery Voltage
5 Alkaline Batteries or 5 NiMH Rechargable Batteries–2000mAH
Supply Voltage
9-32 VDC; 1 A max
Max. Current Consumption
* <180 mA (RF Active); <10 mA (Idle Mode) * Digital Inputs: 34 Available
Analog Inputs
8 Available – 0-5 VDC (configurable as Digital Inputs), 2 proportional, dual-axis joysticks
LED Outputs
2 available (RF and Error)
CAN Connection
J1939 (2-wire)
Power Saving Features
RF Emissions Off Delay <1s; Sleep Mode (<1 mA)
Battery Life
10 h Typical: Usage Dep.
Antenna
Internal*
Dimensions
Approx. 8.75” x 4.5” x 4.5”
Weight
Approx. 2 Lbs.
Enclosure
IP 67
Industries We Serve
Forestry | Utilities | Agriculture
The Stryker Pro Wireless Remote Kit enhances control for feller bunchers, utility pole service trucks and irrigation systems.
Concrete | Construction | Municipal
The Stryker Pro Wireless Remote Kit provides precise operation for concrete boom pumps, construction cranes and garbage trucks.
Mining | Metals | Oil & Gas
The Stryker Pro Wireless Remote Kit ensures reliable control for rock crushers, metal stamping presses and oil well servicing equipment.
Defense & Aerospace
The Stryker Pro Wireless Remote Kit delivers precise operation for unmanned ground vehicles and aircraft towing tractors.
