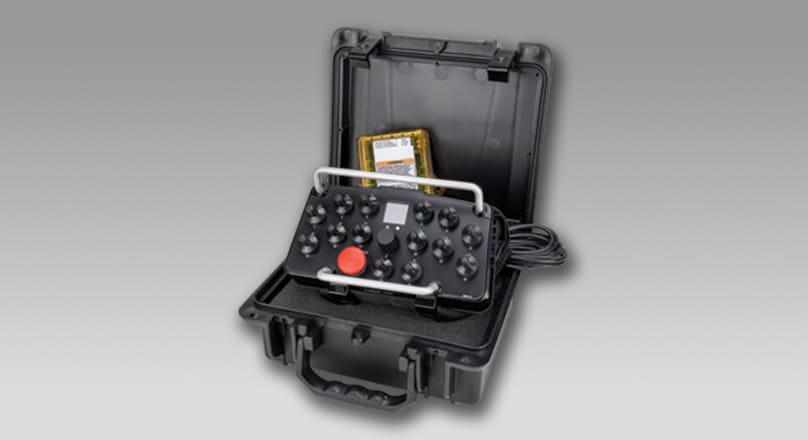

13-Toggle Switch Remote
The Stryker is a mid-sized transmitter with all the functionality of a belly box in a manageable, ergonomic design ideal for all-day use. It offers outstanding wireless signal reliability using our 2.4 GHz FEX technology and internal dipole antennas. This transmitter features 13 momentary multi-directional toggle switches for non-PWM control of components. It also has a 1.2” sunlight-readable display for engine, sensor, and machine feedback or transmitter setup/diagnostics. The Stryker has a twist-to-unlock machine stop switch, a barrel charging port, and a magnetic base.
Quick Specs
Details
Documentation
Related Products
Model #: LXT-24-TS
2.4 GHz General Specifications
- Frequency: Range 2400 – 2483.5 MHz
- Frequency: Control 42 Frequency Hopping Channels (Software Selectable)
- Modulation: MSK
- Security: Channelization, System ID, and Vendor ID
- Operating Temperature: -40C to 85C (-40F to 185F)***
- Humidity: Up to 90% RH, non-condensing
900 MHz General Specifications
- Frequency Range: ISM 902 MHz – 928 MHz
- Frequency Control: 7 Frequency Hopping Channels (Software Selectable)
- Modulation: DSSS (Direct Sequence Spread Spectrum)
- Error Correction: Automatic Error Detection and Automatic Retransmission
- Operating Temperature: -40C to 85C (-40F to 185F)***
- Humidity: Up to 90% RH, non-condensing
Transmitter Specifications
- Display: 128 x 128 px SunlightReadable E-Ink display
- Battery Voltage: 5 Alkaline Batteries or 5 NiMH Rechargable Batteries–2000mAH
- Supply Voltage: 9-32 VDC; 1 A max
- Max. Current Consumption: <180 mA (RF Active); <10 mA (Idle Mode)
- Digital Inputs: 34 Available Analog Inputs 8 Available – 0-5 VDC (configurable as Digital Inputs)
- LED Outputs: 2 available (RF and Error)
- CAN Connection: J1939 (2-wire)
- Power Saving Features: RF Emissions Off Delay <1s; Sleep Mode (<1 mA)
- Battery Life: 10 h Typical: Usage Dep.
- Antenna: Internal*
- Dimensions: Approx. 8.75” x 4.5” x 4.5”
- Weight: Approx. 2 Lbs.
- Enclosure: IP 67
